Main body Material: Aluminum T6061
Tilting Range: +/- 15°
Camera Screw Thread: 1/4” Screw Thread

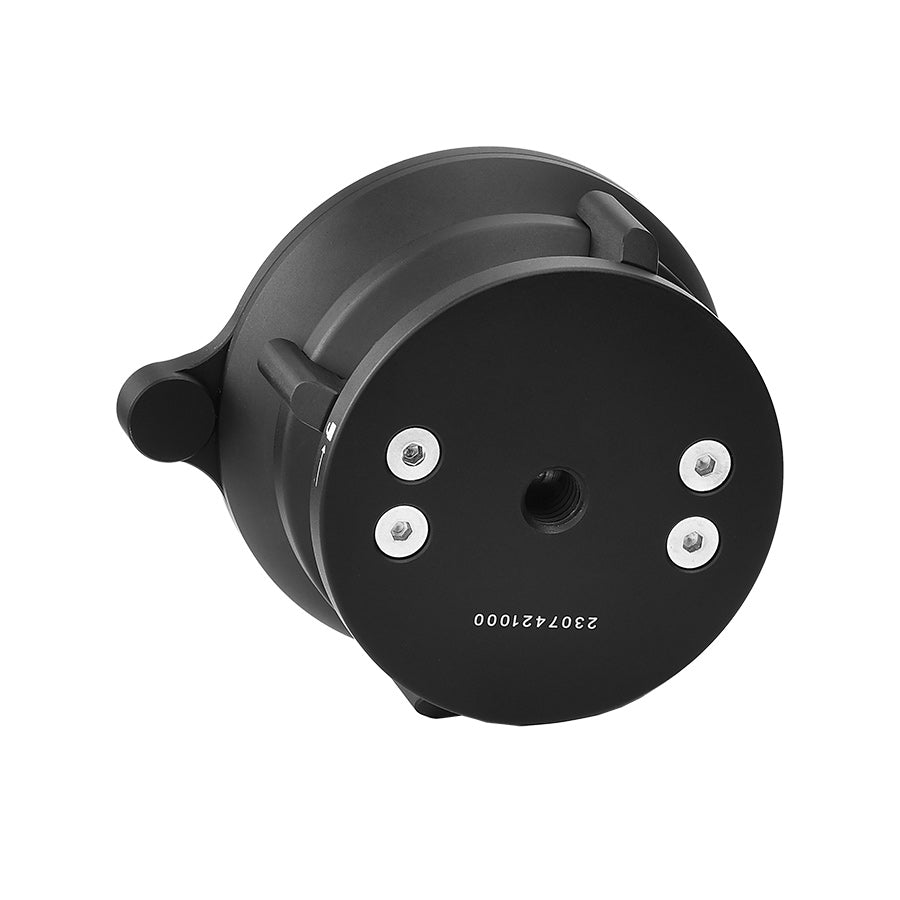

Tripod Mounting Screw Thread: 3/8” Inner Thread
Platform Diameter: 3in./75mm
Base Diameter: 2.6in./67mm
Weight:10 oz/283.5 G
Max Load Capacity:33.07 lb./15.0Kgs.

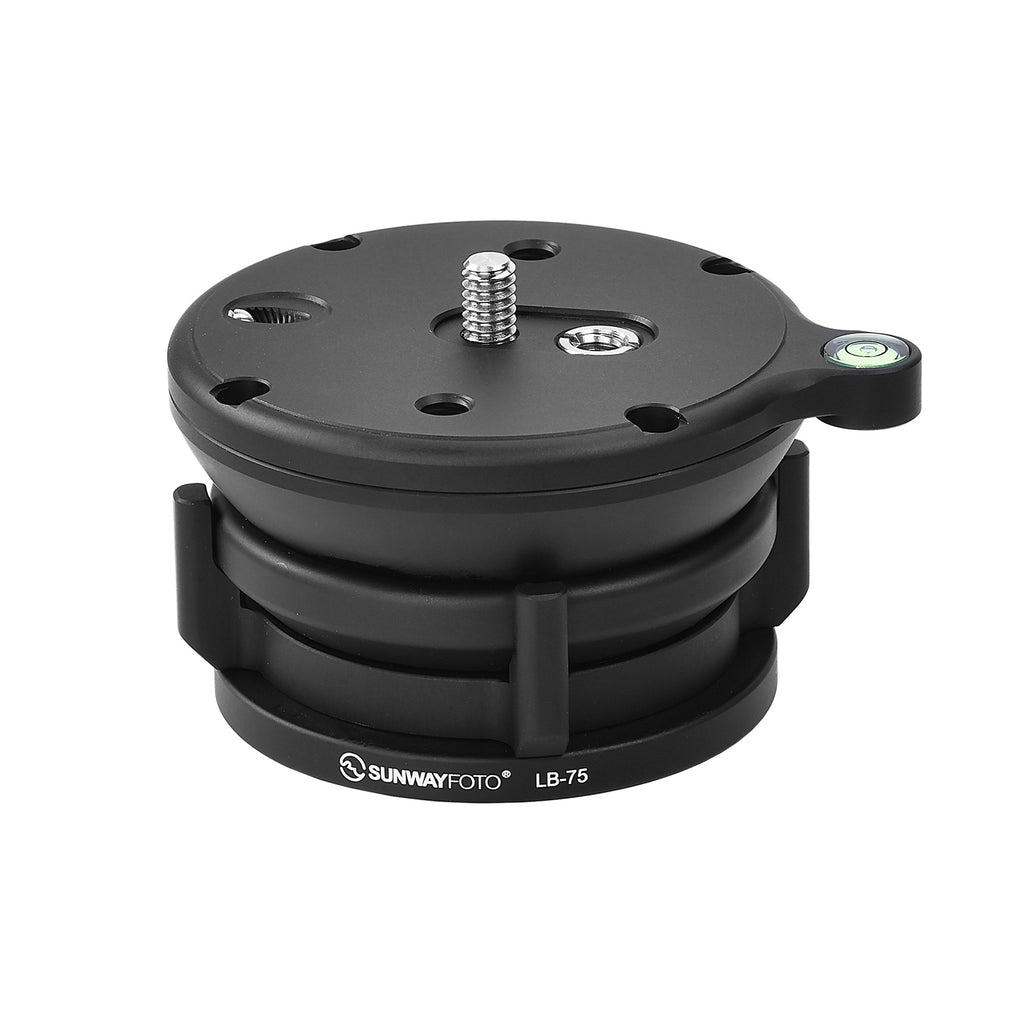

✪Leveling Base LB-75 is a great tool addition in a panoramic system, as well as when shooting landscapes working with a tripod on rough or inclined terrain.
✪Safe and steady: Enables equipment with high center of gravity such as 6x6 and 6x7 medium format cameras to be leveled safely and easily.
✪Ultra-big load capacity: Hemisphere design, maximized contact area with the base for bigger load capacity compared with other ballheads. Suitable for panoramic stitching system, and heavy equipment like video camera.Max load capacity of 15 KG;
✪Smooth operation: Exquisitely CNC machined to make sure the base of the hemisphere is perfectly fit with the base, and use professional damping oil for its smooth and easy operation;
✪High Locking Strength: Full wrap locking ring increases torque for easy locking. Compared to traditional single point locking, the LB-75 locks all around at 360 degrees.The locking force is even,strong and lasting.
✪Anti-shifting Design: Equipped with anti-shifting set screw on the top platform to effectively prevent mounted equipment from shifting while in use.
